Kind of infrastructure
Singular equipments
Typology
Imaging/microscopy
University
Zaragoza (UNIZAR)
Hubs
Cultural heritage
Application / Industrial sector
Cultural heritage
Description of equipment

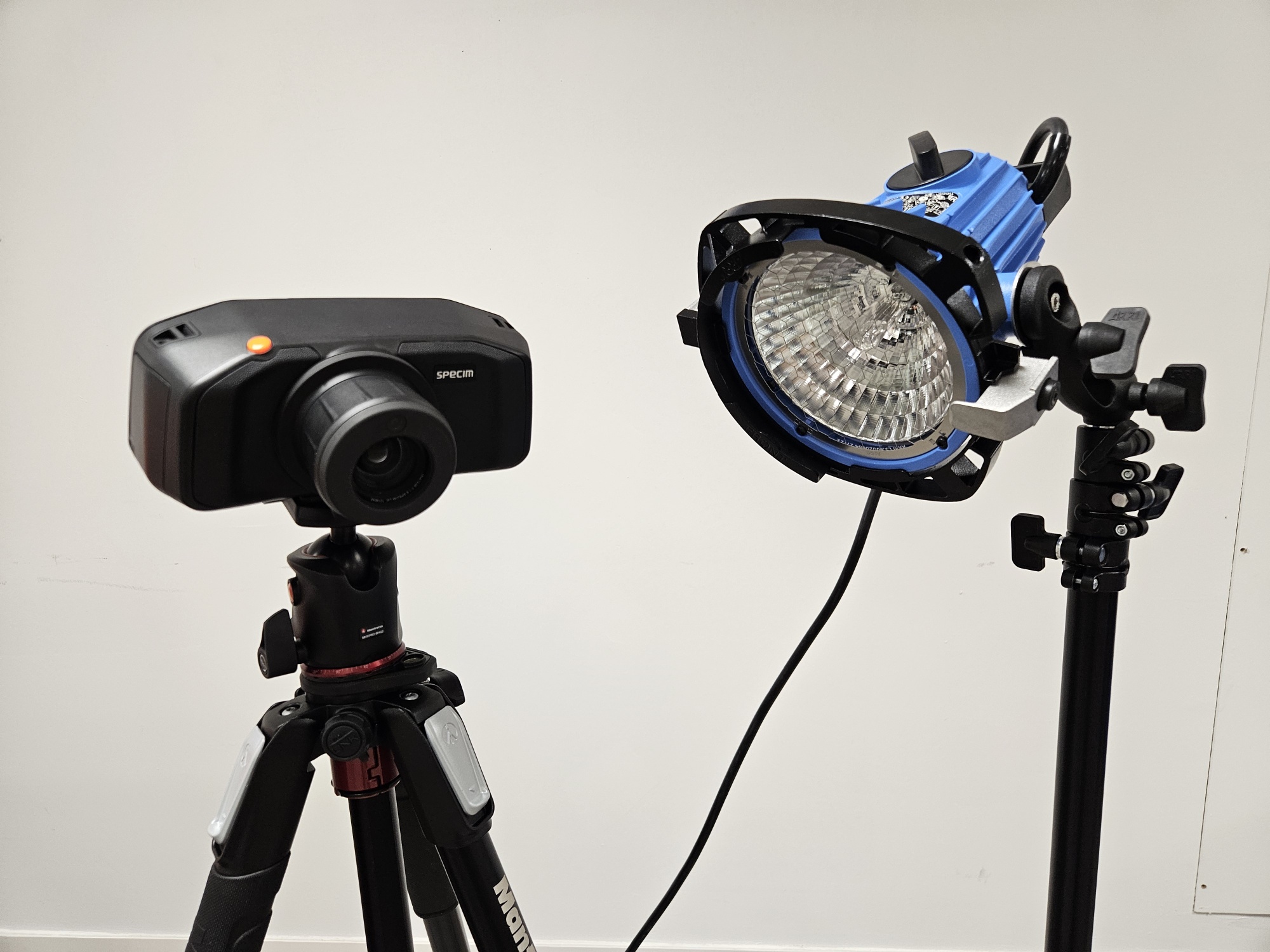

Specim IQ is a portable carry on hyperspectral camera that contains features needed for hyperspectral data capturing, data processing, and result visualization.
Location
Institute
Research Institute of Heritage and Humanities
Features
Technicians
Technical specifications
Spectral Camera VNIR 400 – 1000 nm (CMOS)
Viewfinder camera 5 Mpix (rescaled to 1280*960 pixels)
User interface SW By Specim
Storage SD card max 32 GB
Data format Specim Dataset with ENVI compatible data files
Battery 5200mAh Li-Ion (Type 26650)
Operational time Appx. 100 measurements with one SD card and battery
Display & keyboard 4.3” touch screen + 13 physical buttons
Camera interface USB Type-C, WiFi
Size 207 x 91 x 74 mm (depth with lens 125,5 mm)
Weight 1.3 kg
F/number F/1.7
Wavelength band 400 – 1000 nm
Spectral resolution FWHM 7 nm
Spatial sampling 512 pix
Spectral bands 204 (Options Bin 2x and Bin 3x)
Image resolution 512 x 512 pix
PeakSNR > 400:1
Object distance 150 - ∞ mm
FOV 31 x 31 deg
FOV at 1 m 0.55 x 0.55 m
Temperature, operational +5°C - +40°C
Humidity, operational 95% non-condensing
Accessory Pro Pack also available for your Specim IQ which includes:
Illumination Set
Tripod
White Reference Holder
Neck Strap
Hard Case
Spectral Camera VNIR 400 – 1000 nm (CMOS)
Viewfinder camera 5 Mpix (rescaled to 1280*960 pixels)
User interface SW By Specim
Storage SD card max 32 GB
Data format Specim Dataset with ENVI compatible data files
Battery 5200mAh Li-Ion (Type 26650)
Operational time Appx. 100 measurements with one SD card and battery
Display & keyboard 4.3” touch screen + 13 physical buttons
Camera interface USB Type-C, WiFi
Size 207 x 91 x 74 mm (depth with lens 125,5 mm)
Weight 1.3 kg
F/number F/1.7
Wavelength band 400 – 1000 nm
Spectral resolution FWHM 7 nm
Spatial sampling 512 pix
Spectral bands 204 (Options Bin 2x and Bin 3x)
Image resolution 512 x 512 pix
PeakSNR > 400:1
Object distance 150 - ∞ mm
FOV 31 x 31 deg
FOV at 1 m 0.55 x 0.55 m
Temperature, operational +5°C - +40°C
Humidity, operational 95% non-condensing
Accessory Pro Pack also available for your Specim IQ which includes:
Illumination Set
Tripod
White Reference Holder
Neck Strap
Hard Case
Contact
Email
iphlab@unizar.es
